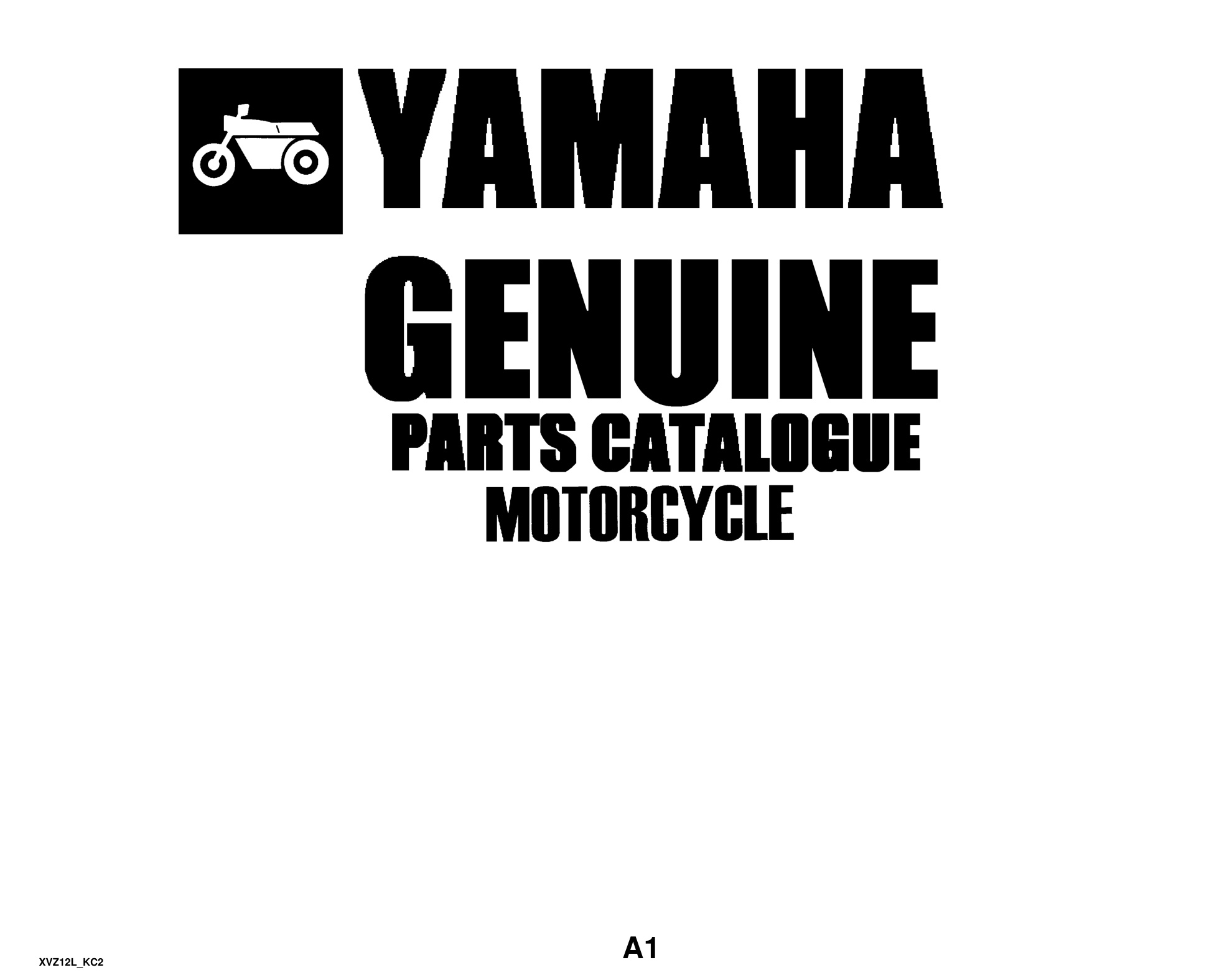

This comprehensive 45-page parts manual provides detailed cylinder head component diagrams and part numbers for the Yamaha XVZ12L KC2 motorcycle. This essential technical document contains exploded view diagrams, part identification numbers, and assembly sequences specific to the cylinder head system.
The manual covers all cylinder head components including valves, springs, guides, seats, gaskets, and related hardware with precise OEM part numbers and quantities. This documentation is invaluable for mechanics, parts departments, and owners who need to identify, order, or inventory cylinder head components. The detailed exploded diagrams show exact positioning and relationships between all parts, making complex rebuilds and repairs much more manageable.
This parts manual is essential for motorcycle mechanics working on Yamaha XVZ12L KC2 engines, restoration specialists rebuilding vintage Yamaha motorcycles, parts counter personnel who need accurate part numbers for customer orders, motorcycle collectors maintaining their XVZ12L machines, and DIY enthusiasts tackling cylinder head service or rebuilds. Professional repair shops will find this manual indispensable for accurate parts ordering and customer estimates.
