This comprehensive parts manual covers the Snapper ZM5200M zero turn mower and related mid-mount Z-Rider zero turning hydro drive series models. The manual provides detailed parts diagrams and part numbers for the complete ZM5200M mower unit along with compatible power unit models including ZM2200K, ZM2500KH, ZMT2500KH, MZM2200KH, MZM2300KH, ZM2501KH, MZM2301KH, and ZM2502KH. This is an essential resource for anyone maintaining or repairing these professional-grade zero turn mowing systems.

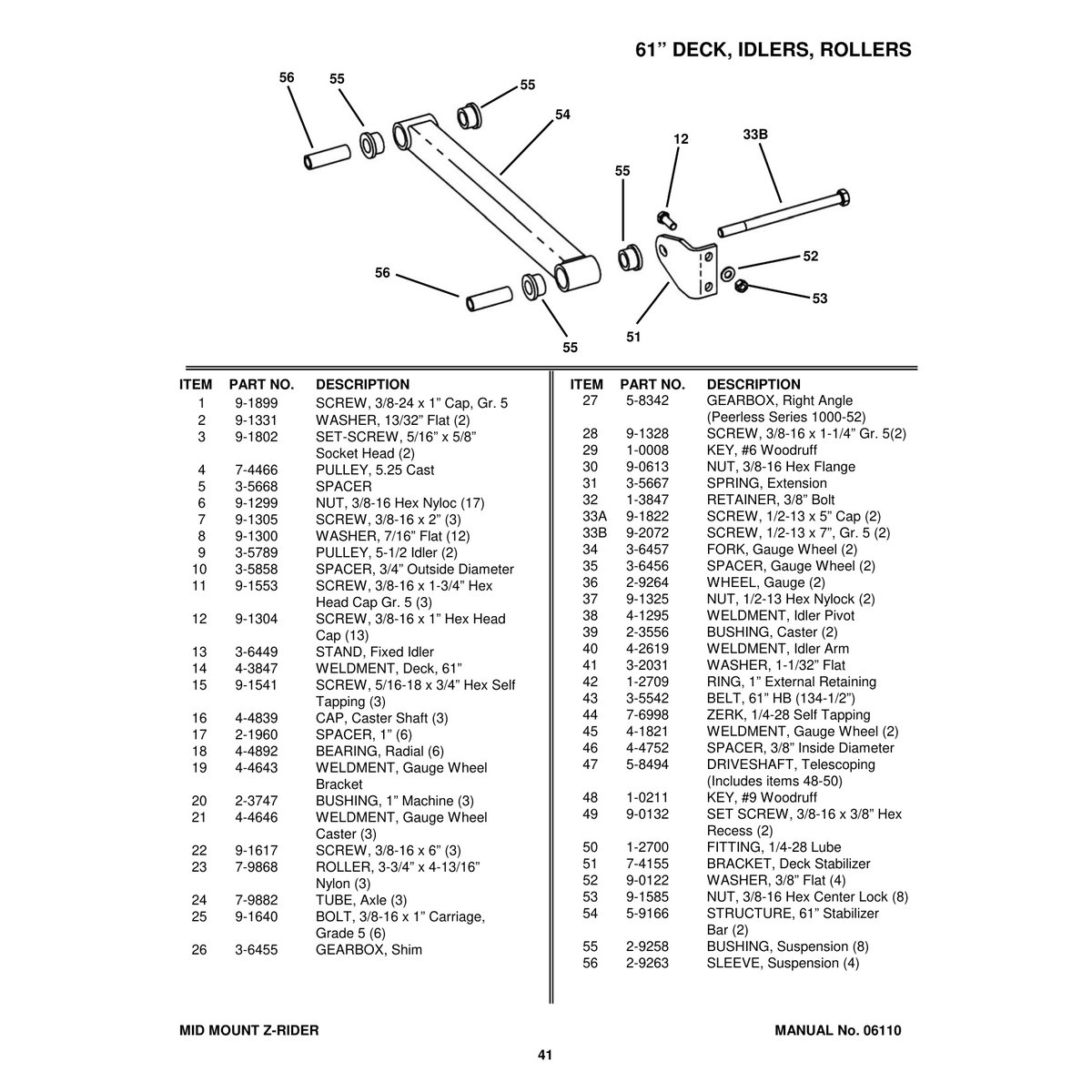

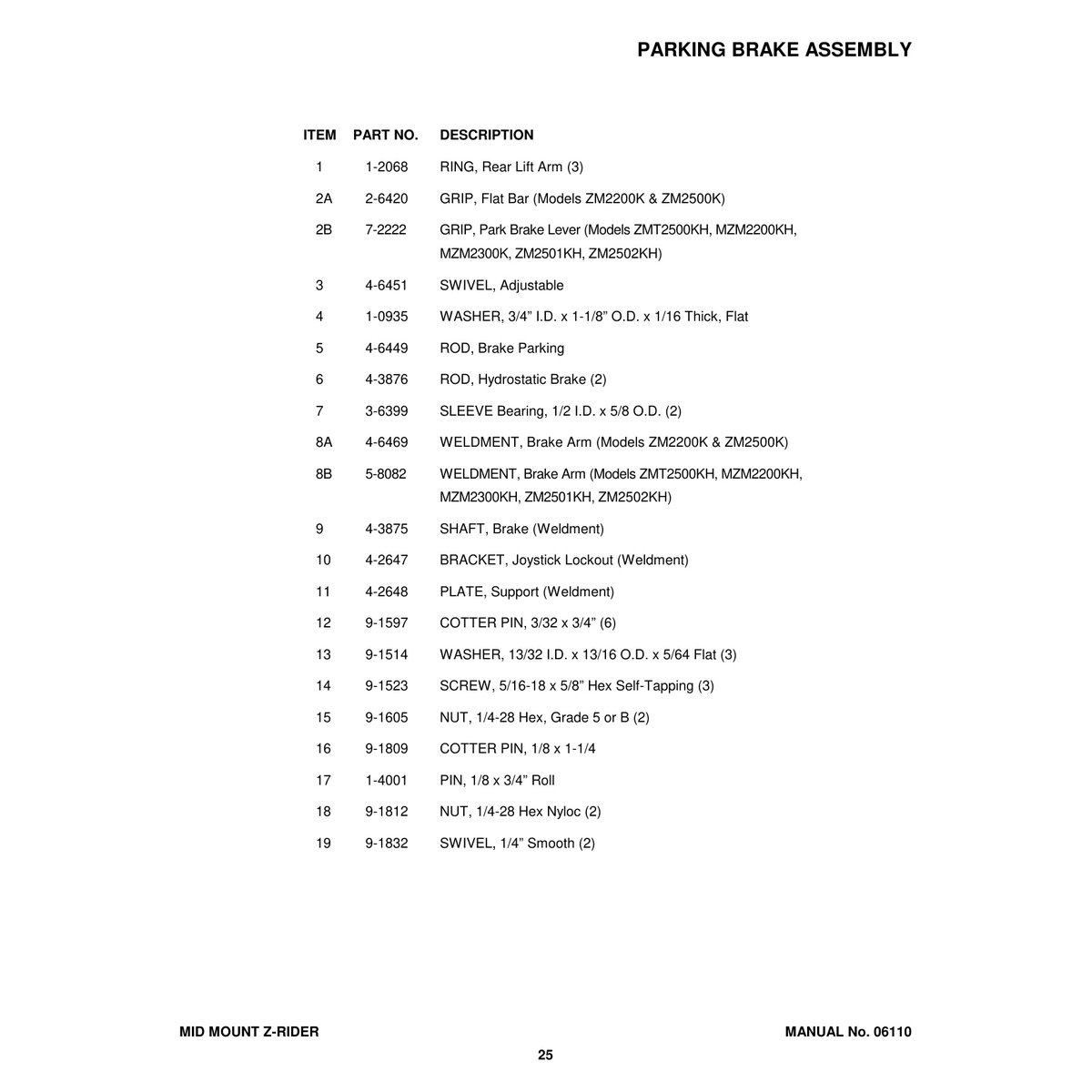

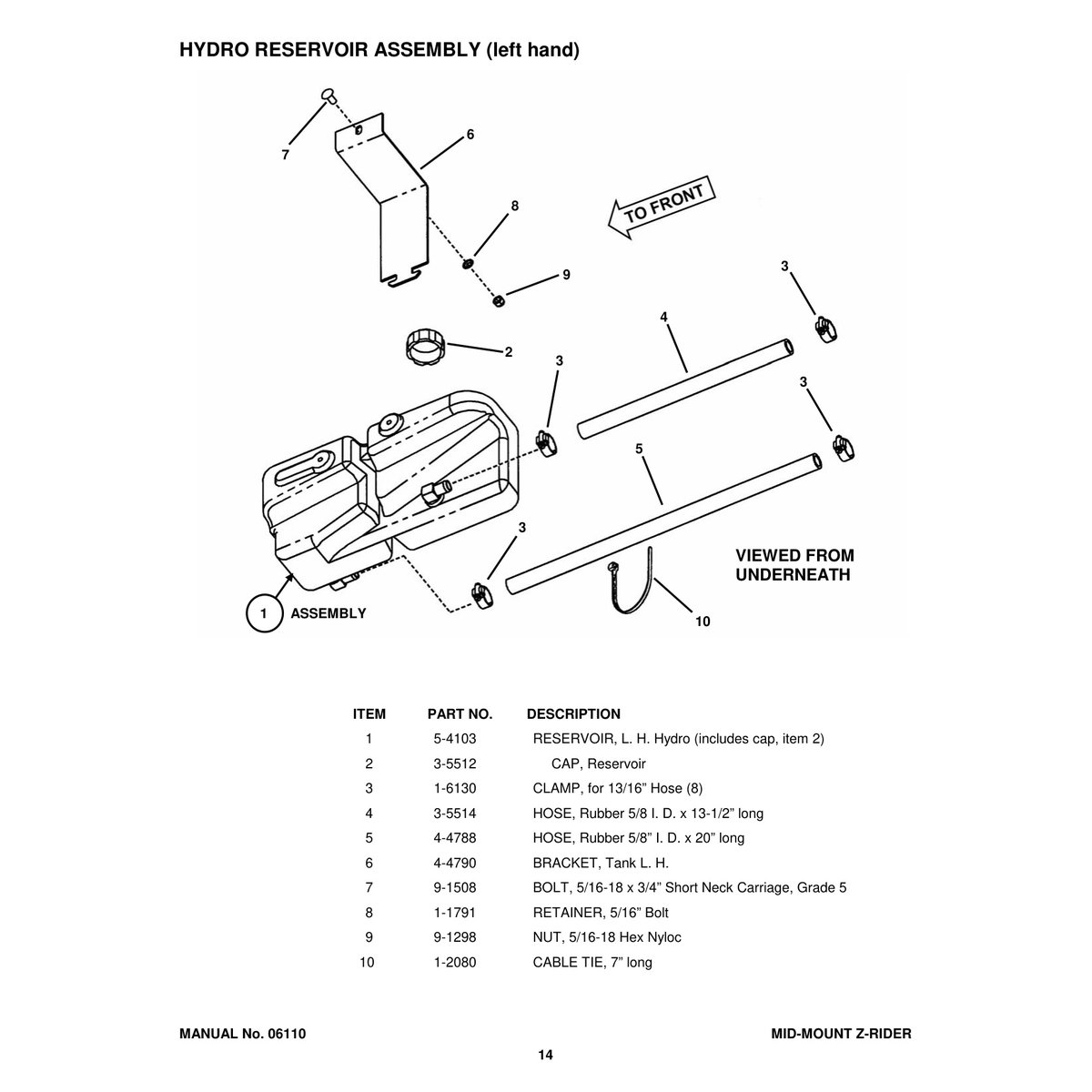

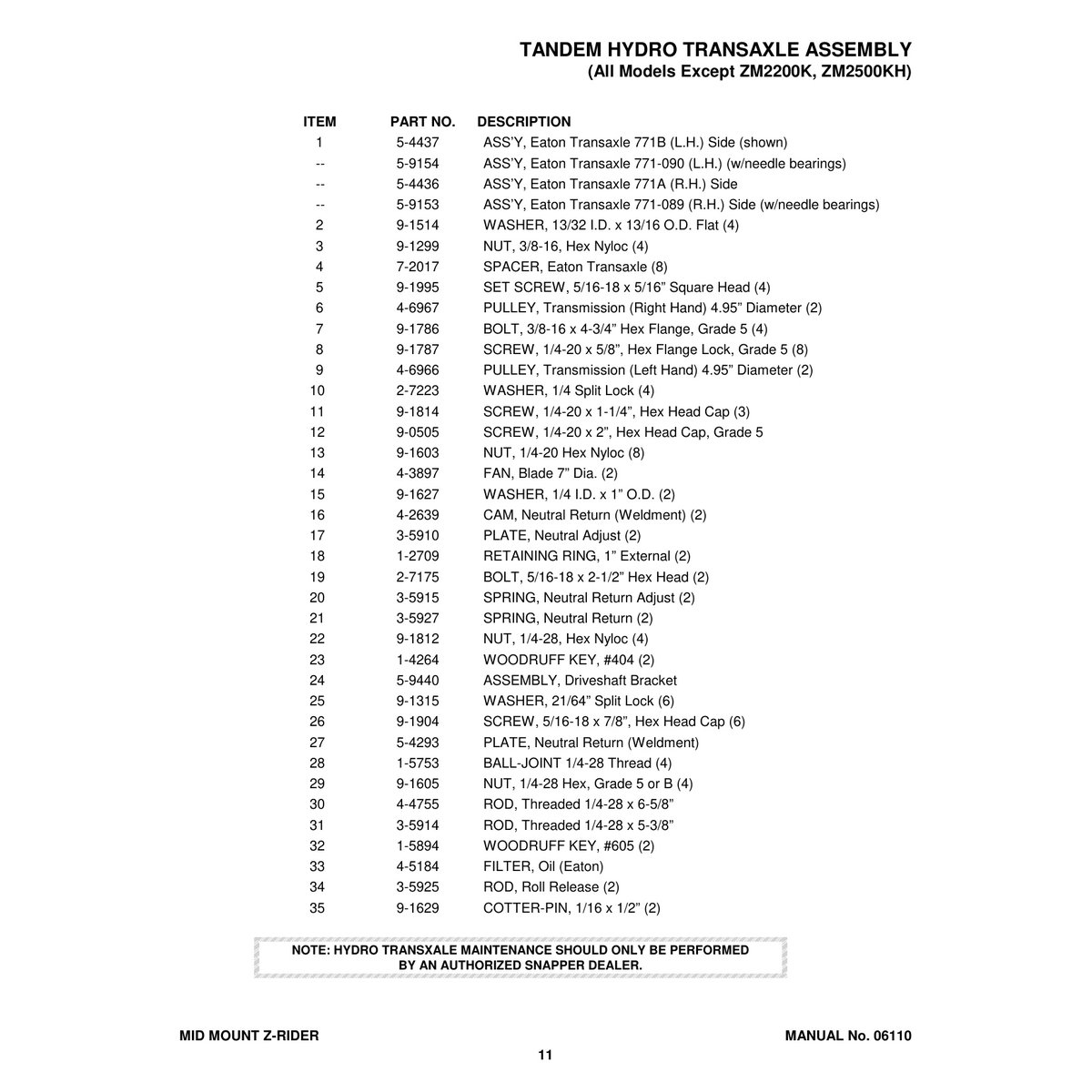

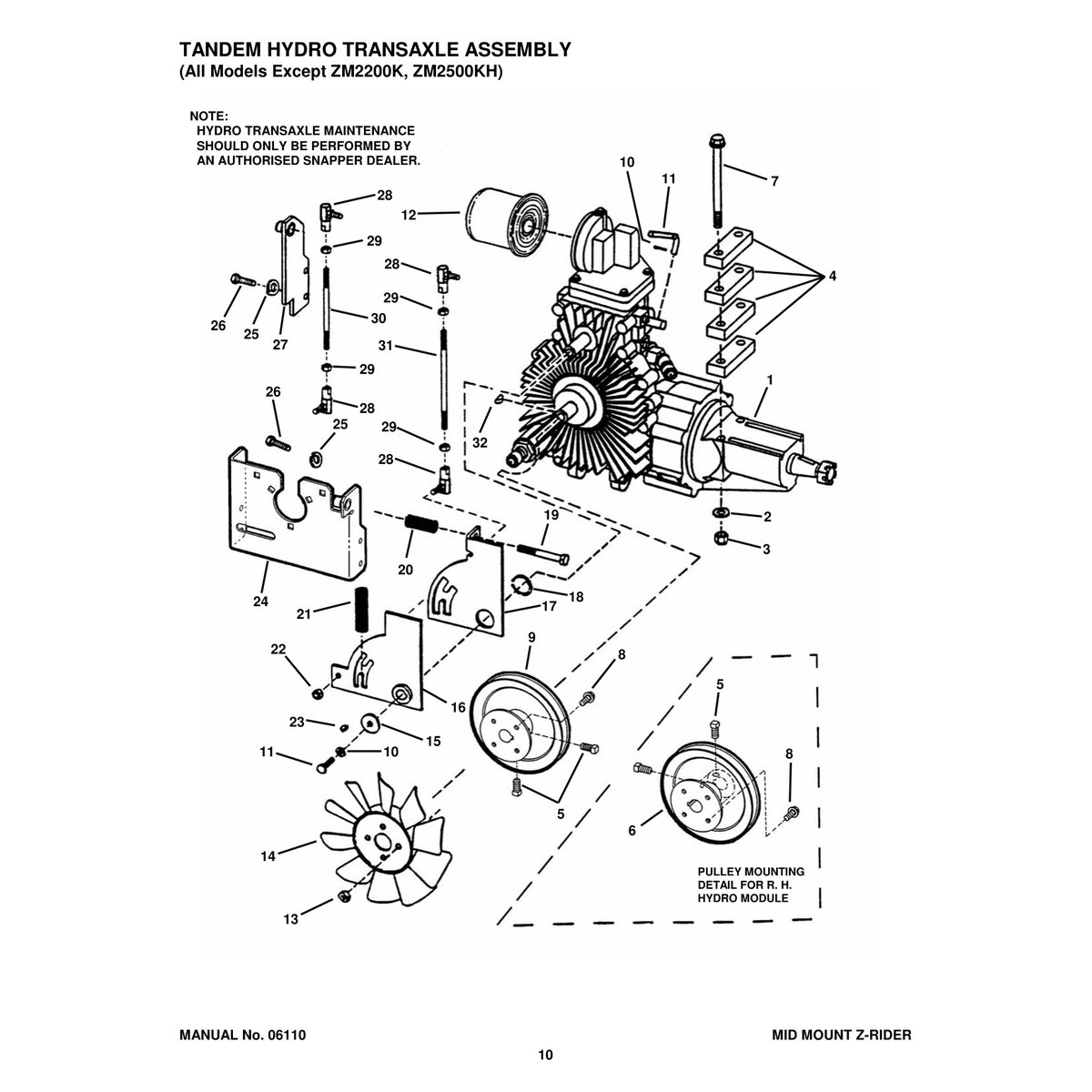

The manual includes detailed breakdowns of major assemblies including drive tire and wheel components, engine sub-assemblies, fuel tank systems, tandem hydro transaxle assemblies for different model configurations, footrest assemblies, and hydro reservoir systems. Each section provides exploded view diagrams with corresponding part numbers, making it easy to identify and order the correct replacement components for your specific model configuration.
This digital download provides instant access to the complete 56-page parts reference guide, originally published as Manual No. 06110. Whether you’re a professional technician, equipment dealer, or equipment owner performing your own maintenance, this manual contains the detailed parts information needed to keep your Snapper zero turn mower operating at peak performance for years to come.
