Snapper Yard Cruiser Hydro Drive Series 1 & 2 Parts Manual PDF

This comprehensive parts manual covers the Snapper Yard Cruiser Hydro Drive Series 1 and 2 mowers, providing detailed part numbers and assembly diagrams for models YZ13331BE, YZ13381BE, YZ145332BVE, and YZ145382BVE. The manual includes complete parts breakdowns for all major components including rear wheels, front caster assemblies, frame assemblies for both series, operator seat and joystick controls, transaxle and fender assemblies, clutch systems, deck lift mechanisms, and brake/clutch lever assemblies.

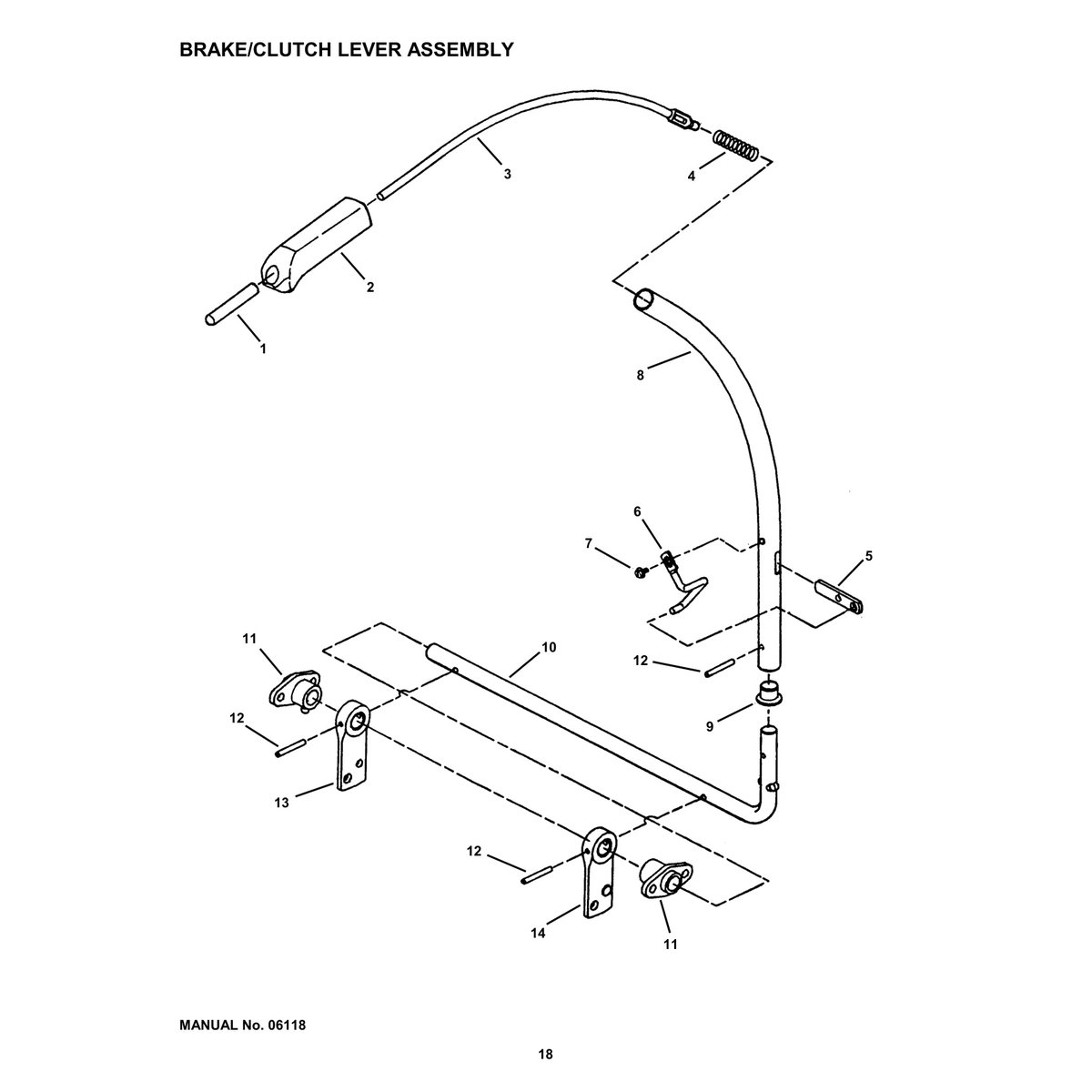

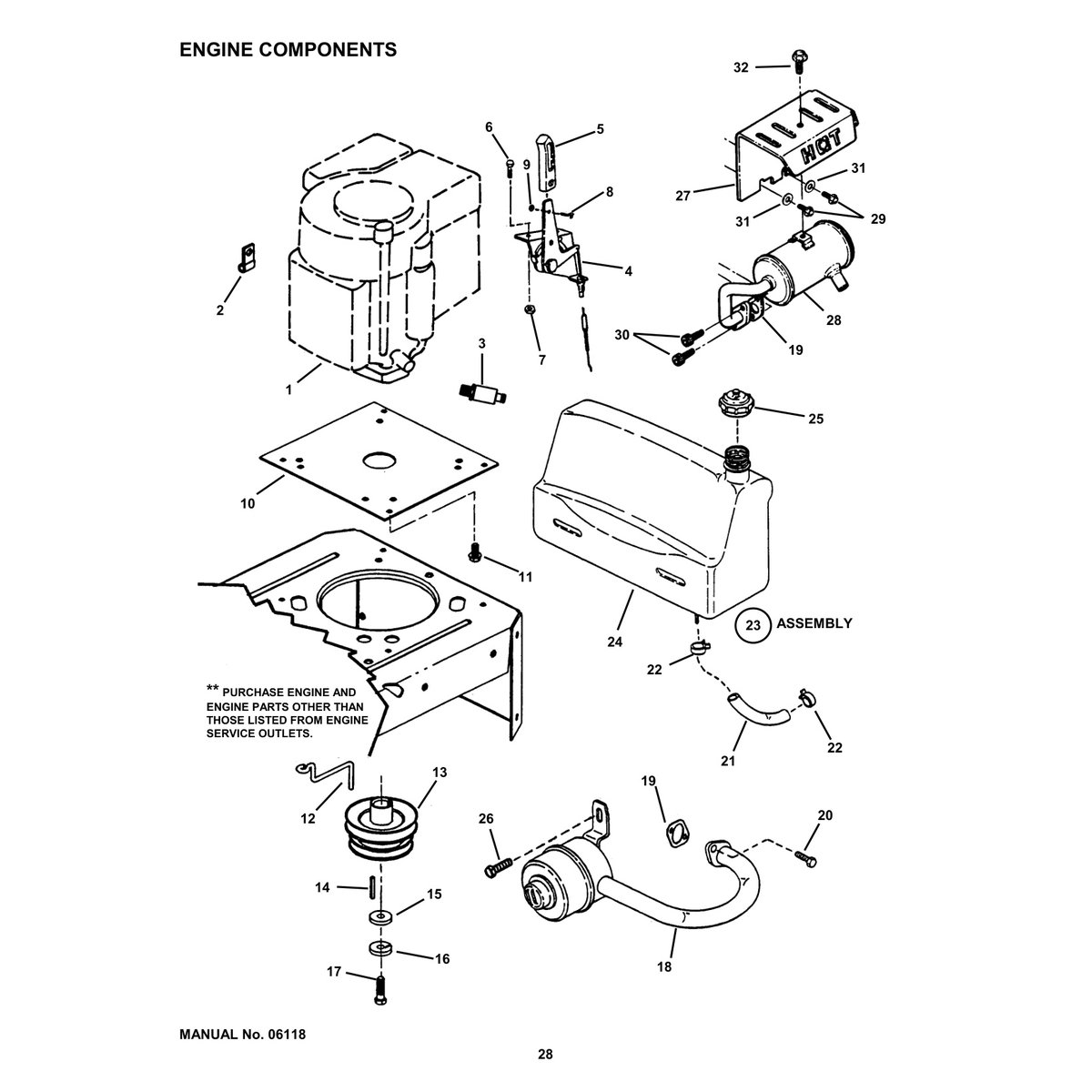

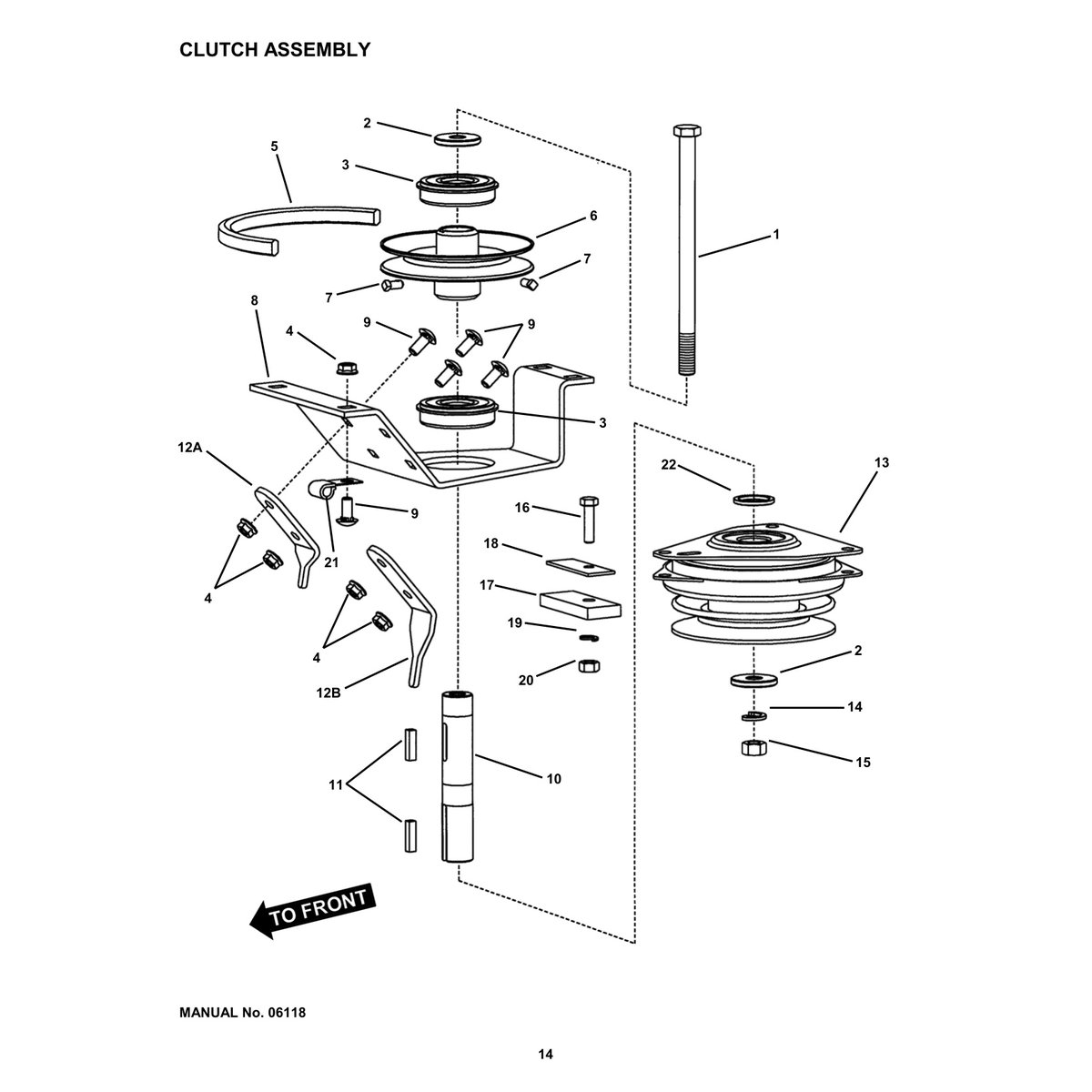

Each section features detailed exploded view diagrams with corresponding part numbers, making it easy to identify and order the correct replacement parts for your Snapper Yard Cruiser mower. The manual covers both 33-inch and 38-inch mowing deck models, with specific callouts for different tire sizes and rim specifications between model variants. Professional technicians and DIY mechanics will find this manual invaluable for maintenance, repair, and parts ordering tasks.

This official Snapper parts manual ensures you have access to accurate part numbers and assembly relationships, helping you maintain your Yard Cruiser Hydro Drive mower properly. The clear diagrams and comprehensive parts listings make this an essential reference document for anyone working on these popular zero-turn mowers.
