Snapper NIR5003B Intermediate Rear Tine Tiller Parts Manual

This official Snapper parts manual provides comprehensive parts diagrams and reference information for the NIR5003B intermediate rear tine tiller and related Series 3, 4 & 5 models. Originally published by Snapper as Manual No. 06047, this authentic documentation covers multiple tiller variants including IR5003B, NIR5003B, ICFR5004B, EICFR5004B, ICFR5505BV, EICFR5505BV, and CICFR5505HV models from Snapper’s intermediate rear tine tiller lineup.

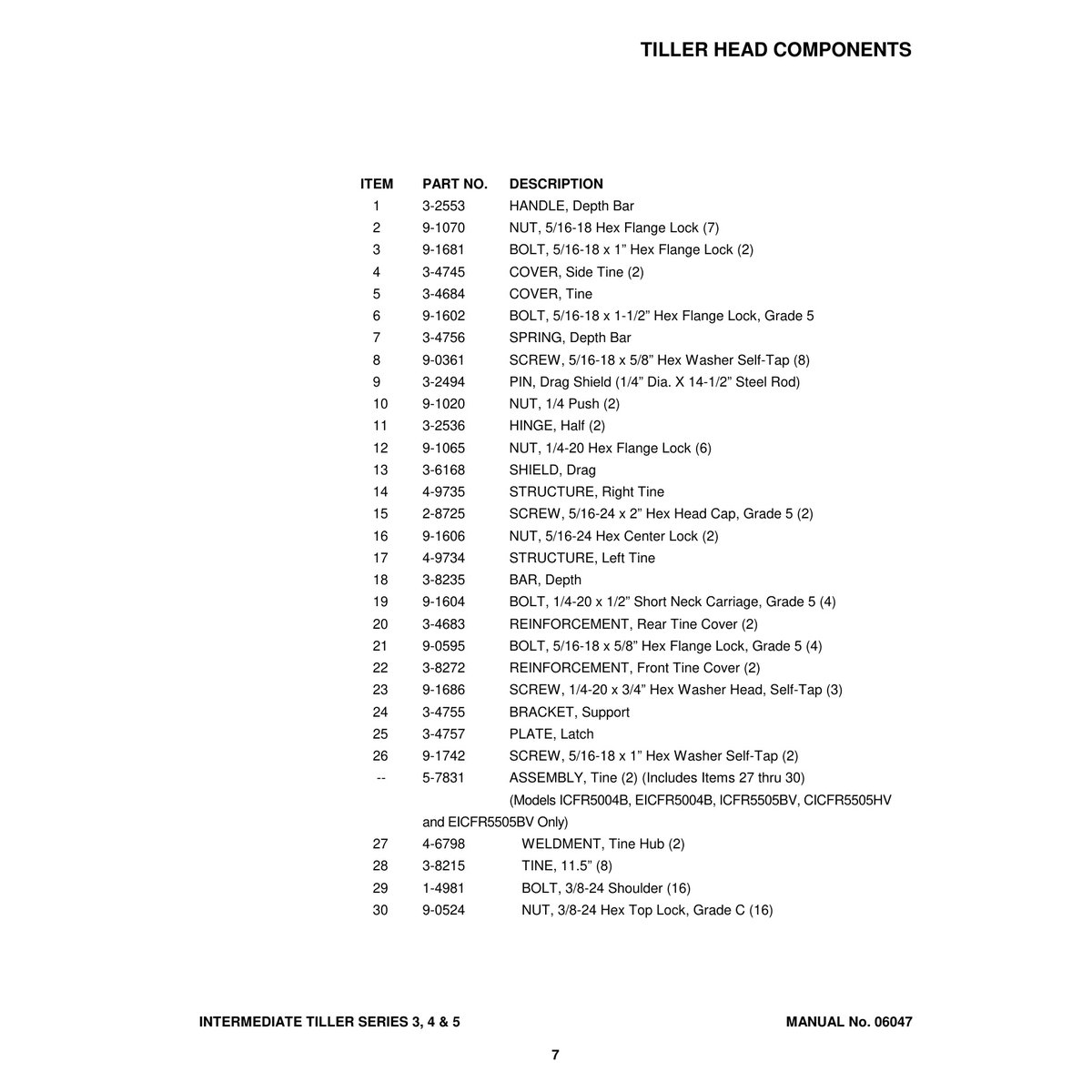

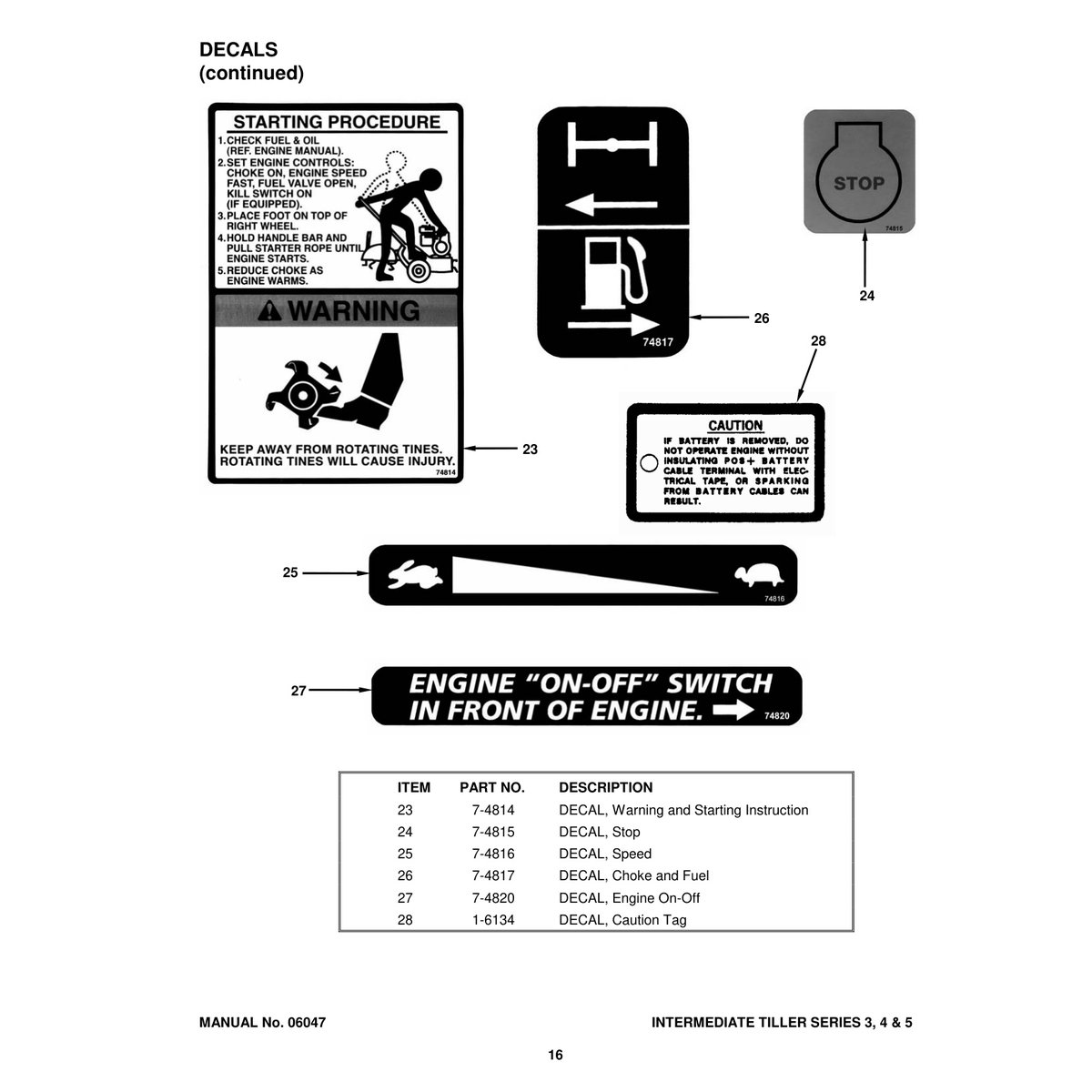

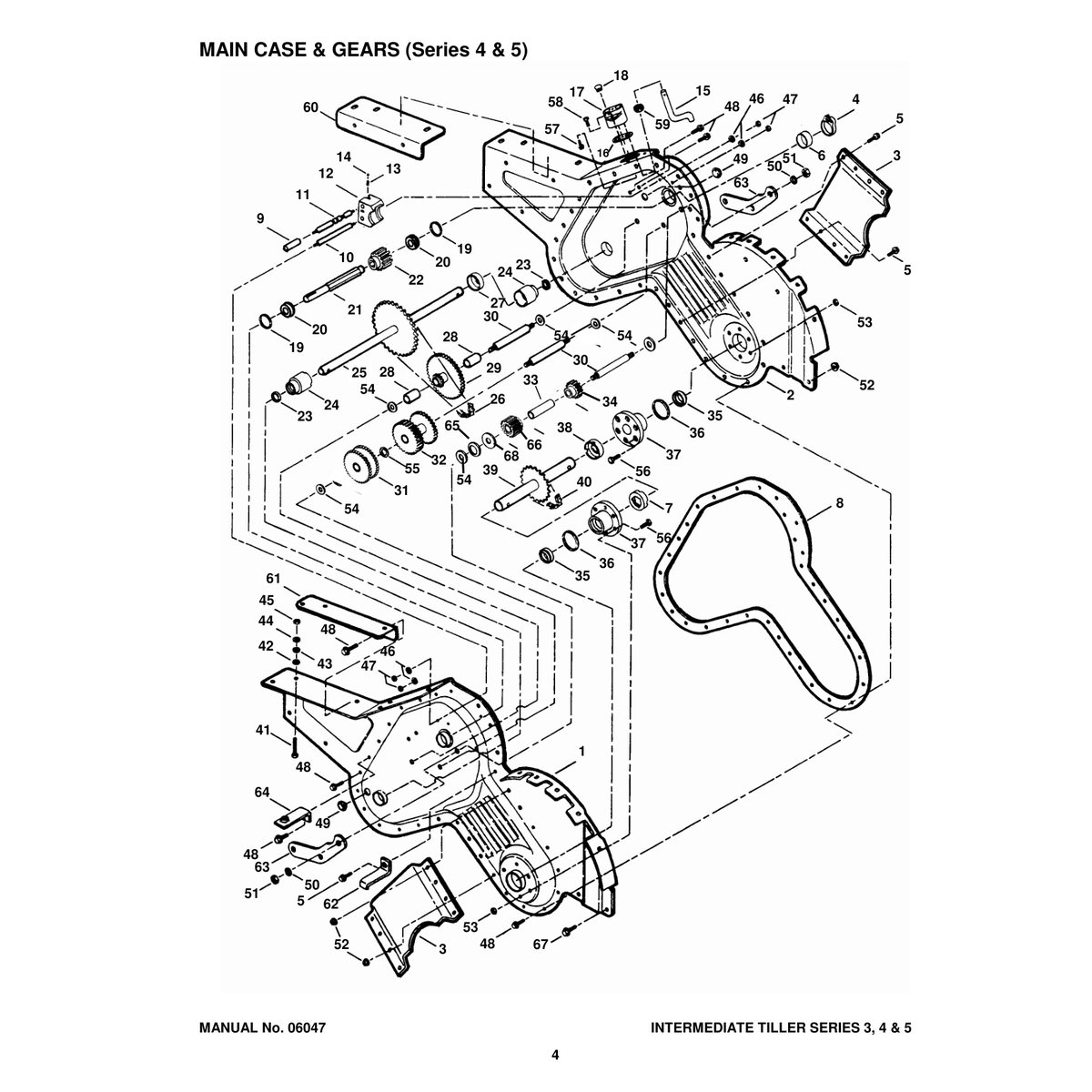

The manual features detailed exploded view diagrams showing the main case and gears assembly for Series 3 tillers, with numbered part callouts for easy identification and ordering. Each component is clearly illustrated in technical drawings that show the relationship between parts and their proper assembly sequence. This documentation is essential for anyone working on maintenance, repair, or restoration of these Snapper intermediate rear tine tillers.

Originally revised in October 2002, this vintage parts manual represents authentic Snapper engineering documentation from an era when these reliable tillers were actively manufactured. The manual includes Snapper’s standard disclaimer about continuous product improvements and design changes. This digital preservation ensures that owners of these older Snapper tillers can continue to identify and source the correct replacement parts for their equipment maintenance needs.
