This authentic Snapper Parts Manual covers the Series 23 Rear Engine Rider lawn mowers, specifically focusing on model 281123BVE and related variants. Originally issued in October 2002 as Manual No. 06152, this comprehensive parts guide provides detailed breakdowns and part numbers for multiple models in the Series 23 lineup including W280923BV, 281023BVE, W281023BVE, 281123BV, 281123BVE, 281123HVE, 281323BVE, W301023BE, 301123BV, 301123BVE, 301323BVE, 331323HVE, 331523BVE, and 331523KVE.

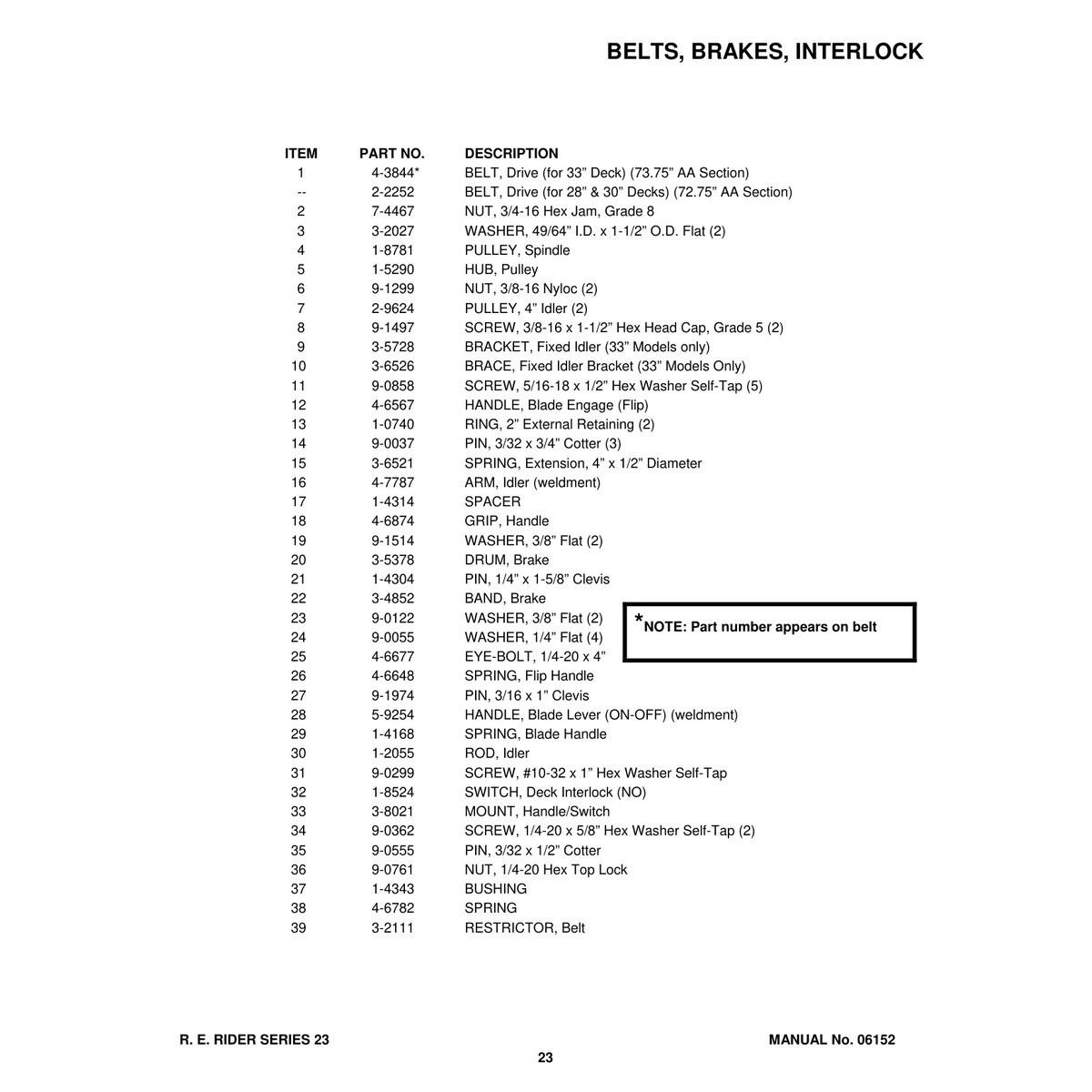

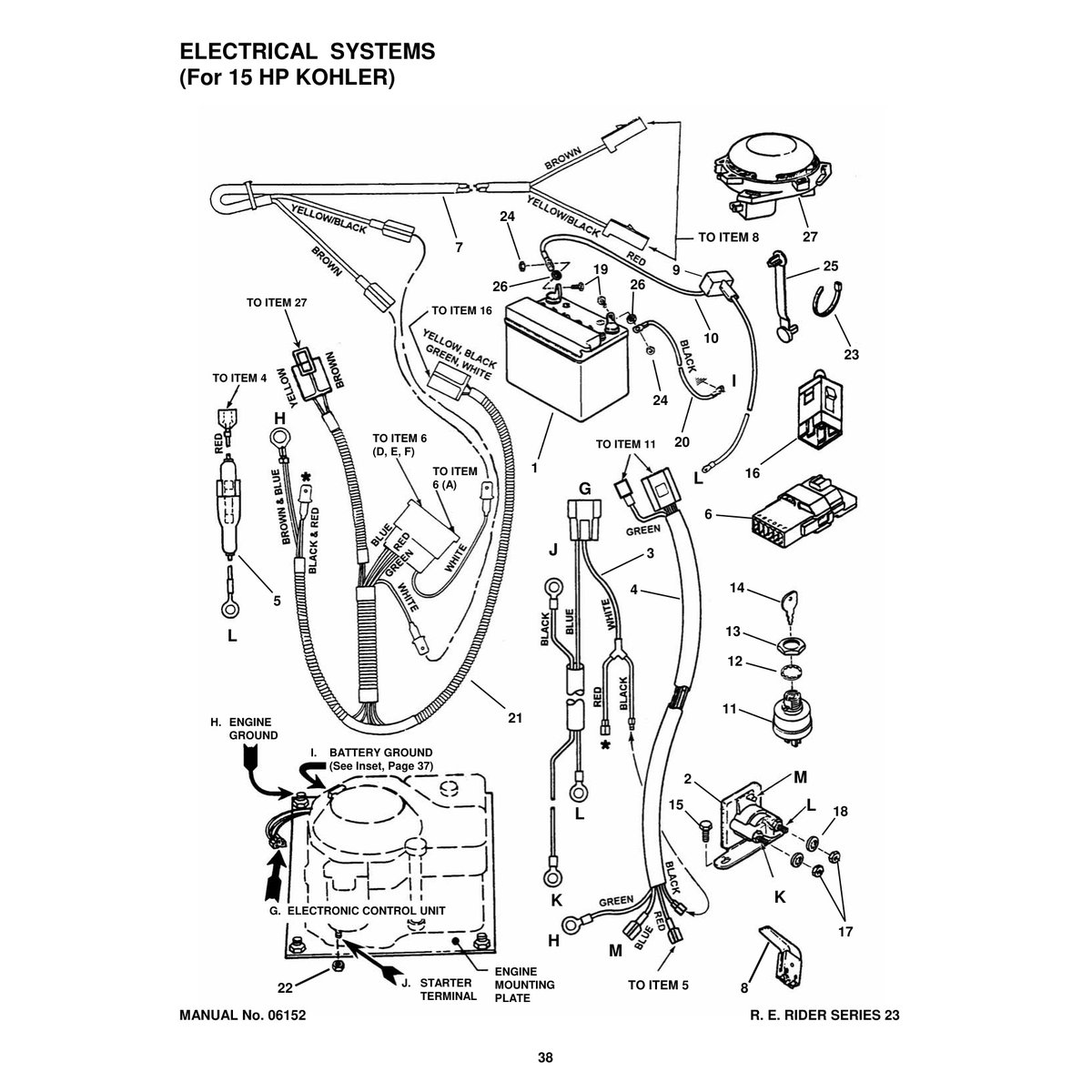

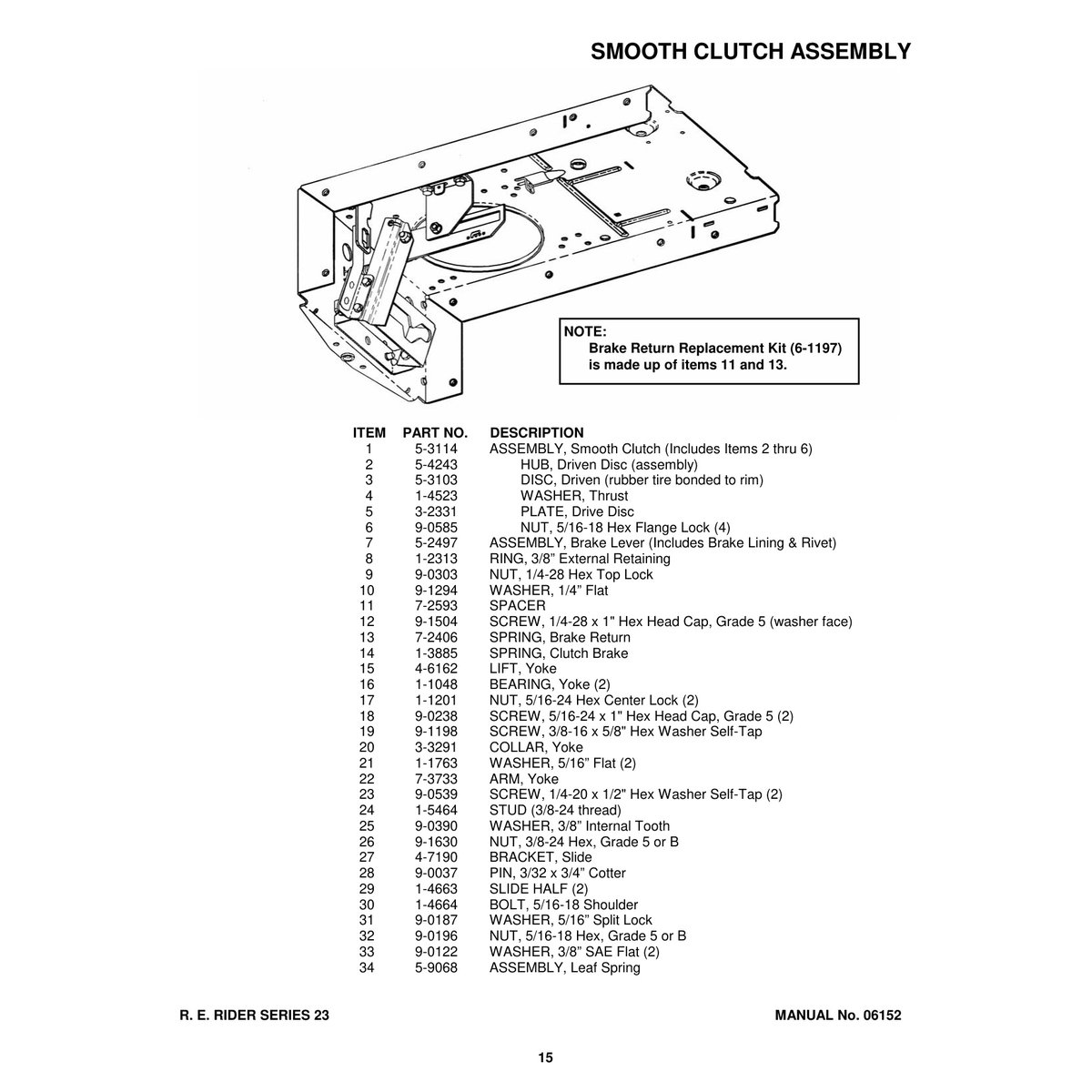

The manual contains detailed parts diagrams and specifications organized by major components including front wheels, rear wheels, front end steering assembly, and main case components. Each section provides exploded view diagrams with corresponding part numbers, making it an essential reference for maintenance, repair, and parts ordering. This official Snapper documentation follows the company’s policy of continuous product improvement, representing the parts configuration as of the October 2002 revision date.
Perfect for owners, mechanics, and parts suppliers working with Snapper Series 23 rear engine riding mowers, this manual ensures accurate part identification and ordering. The clear organization by component groups and comprehensive model coverage makes this an invaluable resource for anyone maintaining or repairing these reliable Snapper lawn tractors.
