This comprehensive parts manual covers Snapper 21-inch steel deck walk behind mowers for Series 12, 14, 15, and 16 models. The manual provides detailed parts diagrams and specifications for both push and self-propelled models, making it an essential resource for maintenance, repair, and parts ordering. The document covers a wide range of model numbers including 215012, 215014, 215015, 216015, P216012, RP215012, and many more variants within the specified series.

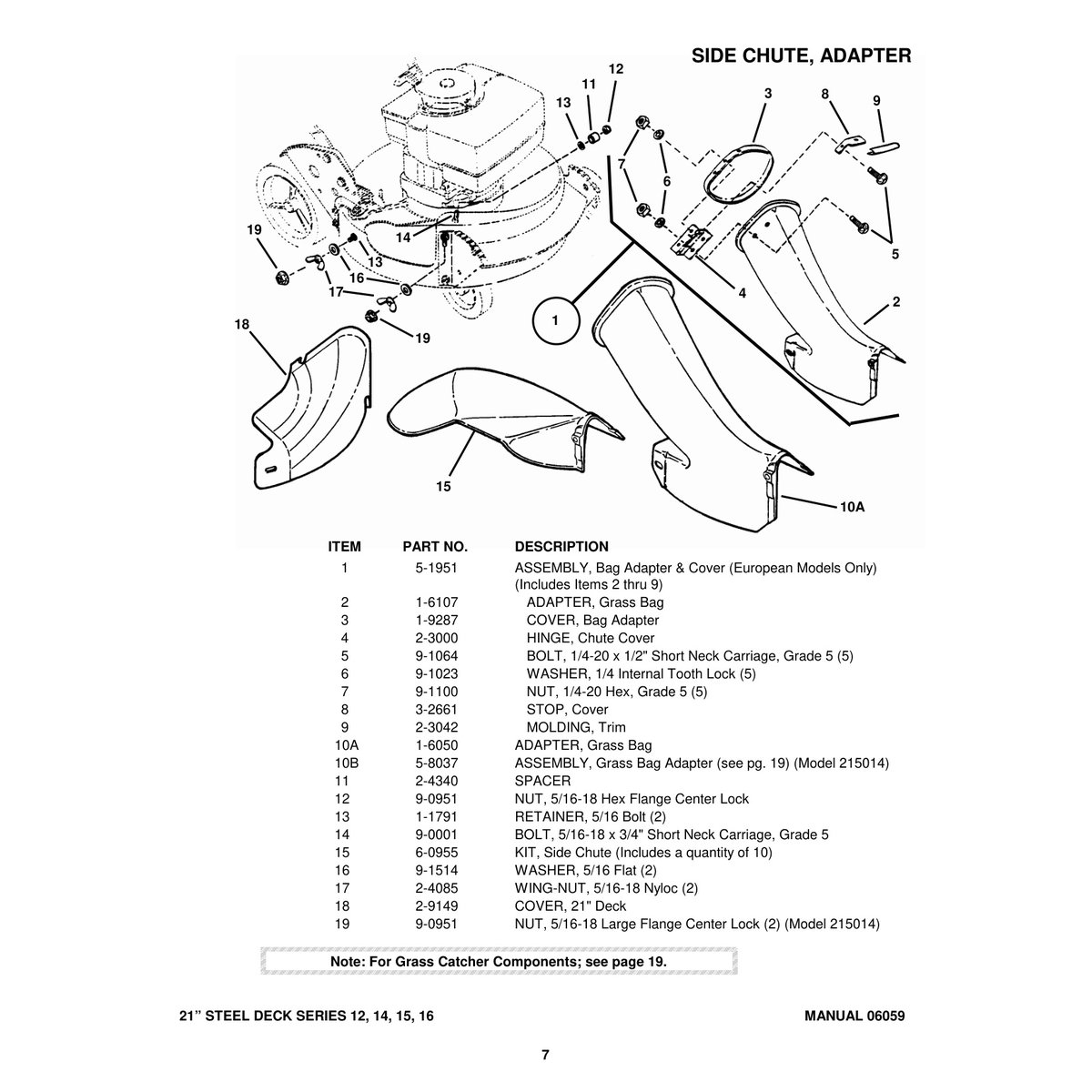

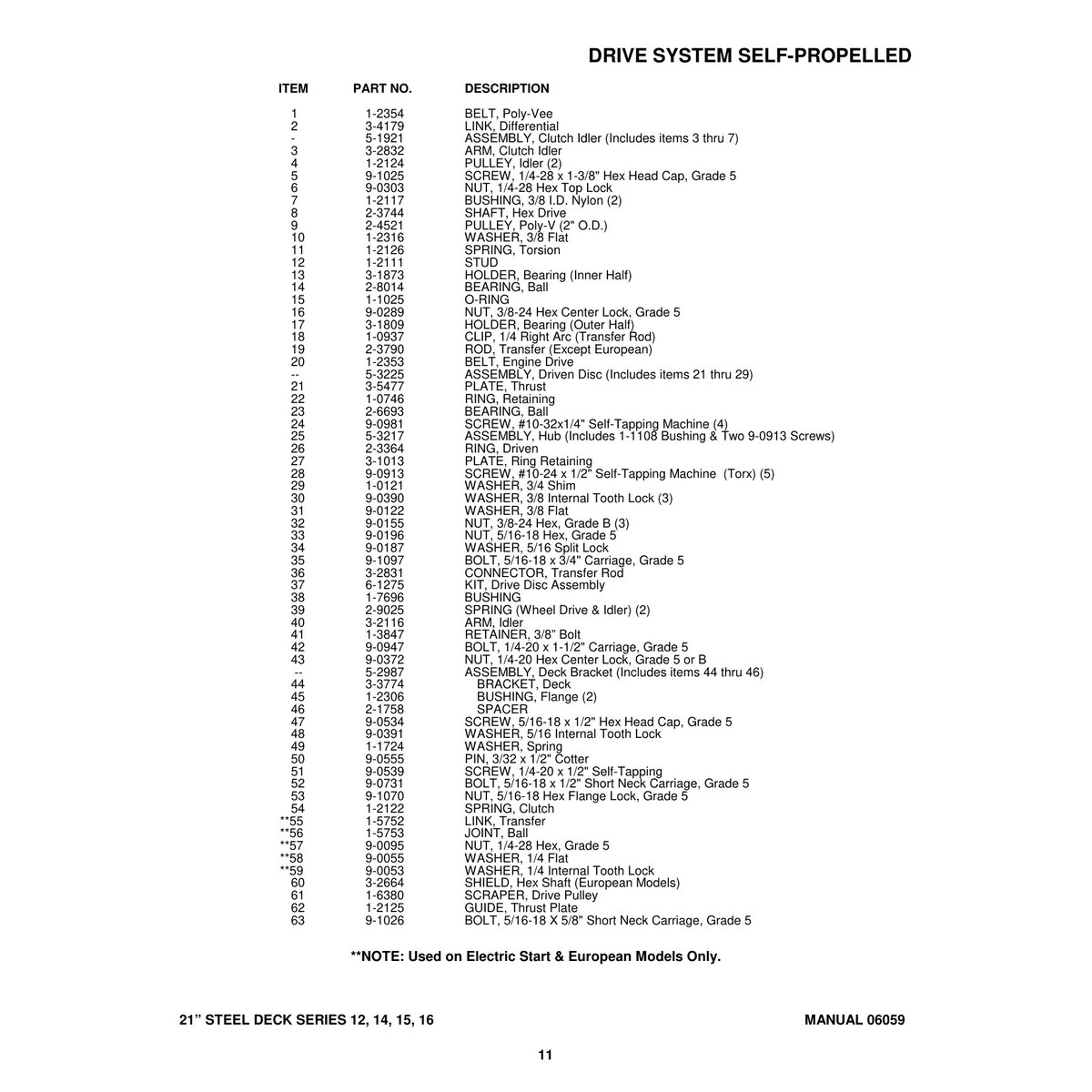

The manual is organized with clear sections covering handles and controls, throttle controls, and engine specifications. Each component is numbered and referenced with corresponding part numbers, making it easy to identify and order the correct replacement parts. The detailed diagrams show the relationship between components and their proper assembly, which is invaluable for both professional technicians and DIY enthusiasts working on these mowers.
This vintage parts manual represents the original manufacturer documentation and provides authentic specifications that may no longer be readily available through current channels. It excludes commercial models and focuses specifically on residential walk-behind mowers in the covered series. The manual includes comprehensive coverage of all major systems and components, from basic controls to engine specifications, ensuring you have the complete reference needed for proper maintenance and repair of your Snapper mower.
